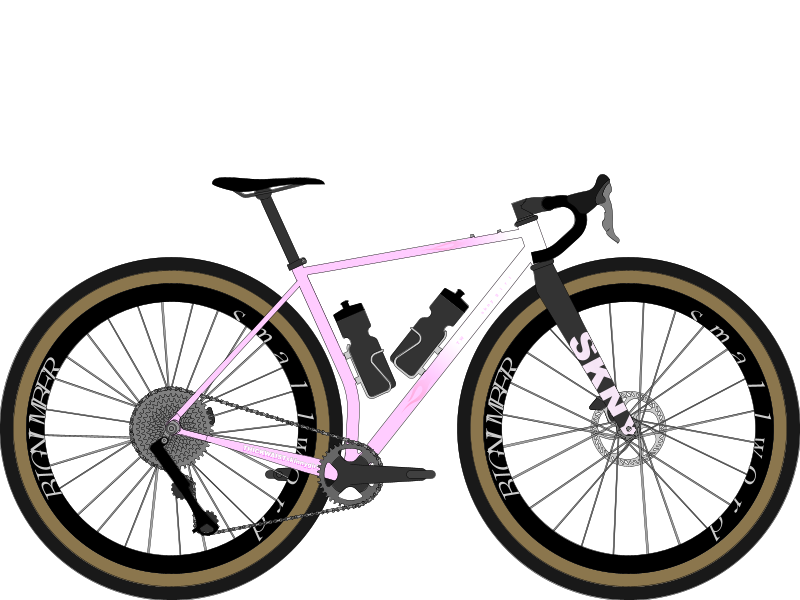

Thick Waist skinnygirl 32" Bike (Model year: 2027)
Okay, so this one I stretched out about 25mm (an inch) past my current fit. Made the saddle tip to bb UCI illegal, slammed the stem. Shortened the horizontal chainstay length. Kinda dialed it in. I modeled the 3D printed bb different from the tall boy because I don't know if it's necesarry to drop the stay. Really spent way too much time on the paint. I like pink.
Built around the Waltly 32 fork because its cheap and available and has a low A to C. Reynolds 853 and 631tubing. Ovalized top tube. Cane Creek components. Stainless steel additively manufactured bb, chainstay yoke, dropouts (paragon udh), and driveside stay. Semi internal routing for mechanial drivetrain (imagine the cables and hoses). I modeled it with Microshift Sword, Praxis, and Madrone parts because I'm poor. King ti cages: one standard, one lowering. Vittoria Peyote 32x2.4s.
Effective tt is 600mm, effective stack is 620ish. Trail is 86 on a 70 degree head angle, bb drop is 110. Theoretically, this frame should take advantage of 32" momentum and stability without handling like a mtb. Should be especially good over flat cat 3 gravel. Rocks and ruts shouldn't turn it; it should fly over roots and potholes without you needing to lose your aero postition. And by you I mean me. Theoretically.
| Manufacturing: Non production Size: L Reach: 425mm Started from: BikeCAD Free | Primary material: Steel Style: Gravel Stack: 604mm BikeCAD version: 17.50 |
