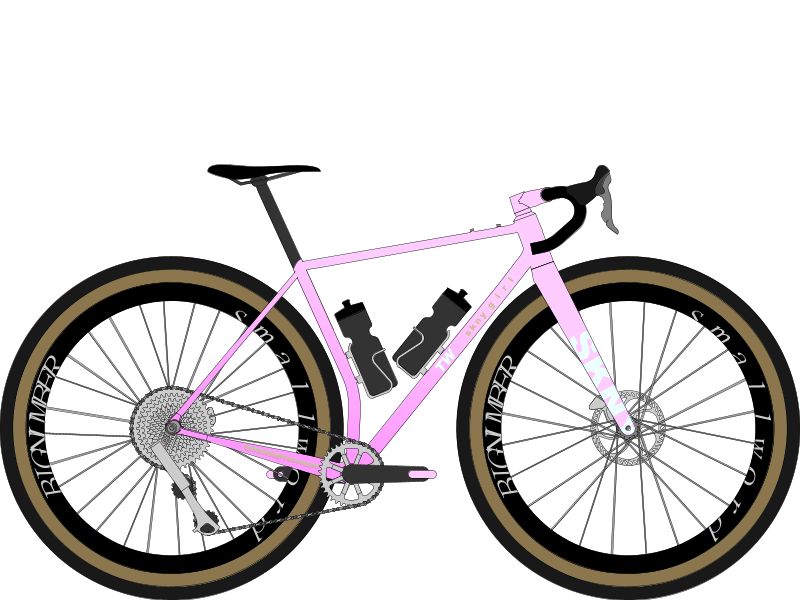

Thick Waist skinnygirl 32" Bike (Model year: 2027)
Download BCAD file / Get embed code
/ More info: https://bikeinsights.com/bike-geometries/6aced3cca65462001a429e0d-2025-test-bik…
Okay, so this one I stretched out about 25mm (an inch) past my current fit.
Built around the Waltly 32 fork because its cheap and available and has wide tire clearance and a low A to C. Ovalized top tube. Cane Creek components. Stainless steel additively manufactured bb, chainstay yoke, dropouts (paragon udh), seat tube bend, and driveside stay. Semi internal routing for mechanial drivetrain.
Effective tt is 600mm, effective stack is 640ish. Trail is 86 on a 70 degree head angle, bb drop is 110. Theoretically, this frame should take advantage of 32" stability and plantedness without handling entirely like an XC bike.
| Manufacturing: Non production Size: L Reach: 416mm Started from: BikeCAD Free | Primary material: Steel Style: Gravel Stack: 615mm BikeCAD version: 17.50 |
