Brake lever styles (Controlling)

Brake lever styles can be controlled in the Handlebar dialog box which is launched from the Handlebar icon Handlebar icon. Choices are shown below. Note that these are not intended to represent specific models of brake levers but are rather intended to be good approximations for a range of brake lever models from the major brands including Campagnolo, Shimano and SRAM.

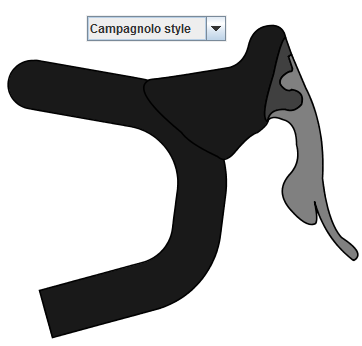

Campagnolo brake lever Shimano brake lever

In BikeCAD version 9.0 the following brake lever styles were added.

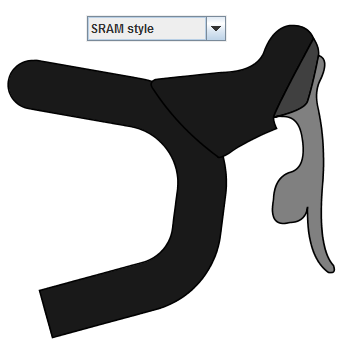

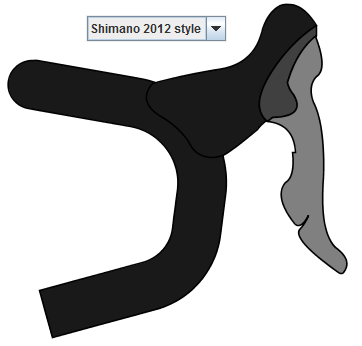

Shimano 2012 brake lever SRAM brake lever
