I'm trying to model some Nitto Albatross handlebars. The Custom handlebar window allows me to start from Drop, Mountain, or Bullhorn. I can't figure out a way to get the dimensions I need starting with any of these.
Help?
jay b
roulez cycles
Tue, Jun 21, 2016
#1
Albatross Handlebars

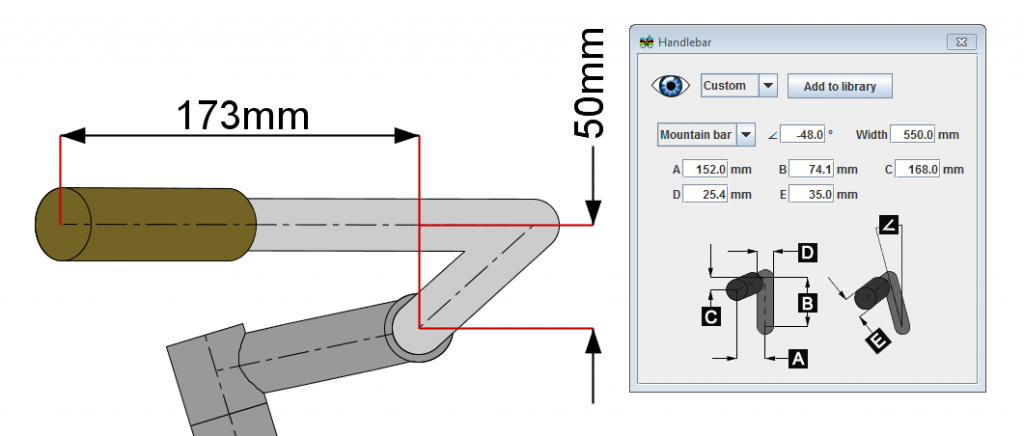

I used the mountain handlebar option to model a pair of Nitto Albatross handlebars as shown below.

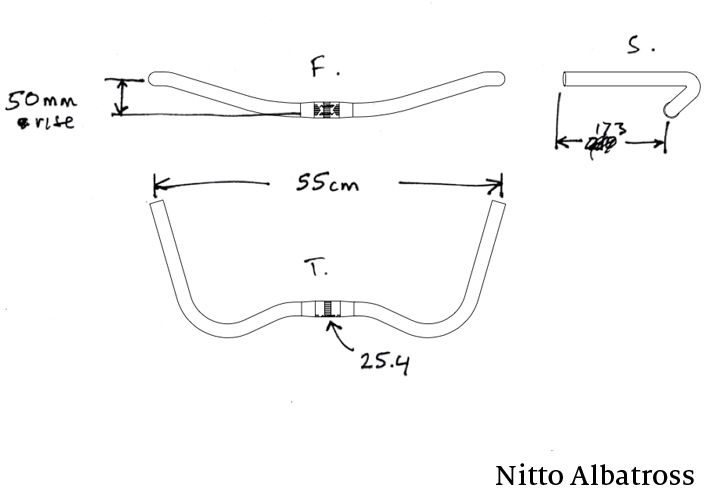

As a reference, I used the following drawing from the Rivendell website.
I appreciate the help. Thanks, Brent.
