Intersecting Top Tube Down Tube Miter Angle

chumba
Framebuilder
By chumba | 9:08 AM EST, Wed March 03, 2021
BikeCAD Pro How To Forum

Curious if anyone knows how to pull an angle up on the drawings: 2nd miter for the top tube notch when the top tube interects a downtube at head tube. Thx -Vince

Brent
Profile picture for user Brent
www.bikecad.ca
Ottawa, ON Canada

Brent

5 years 1 month ago

Permalink

Top tube down tube miter angle

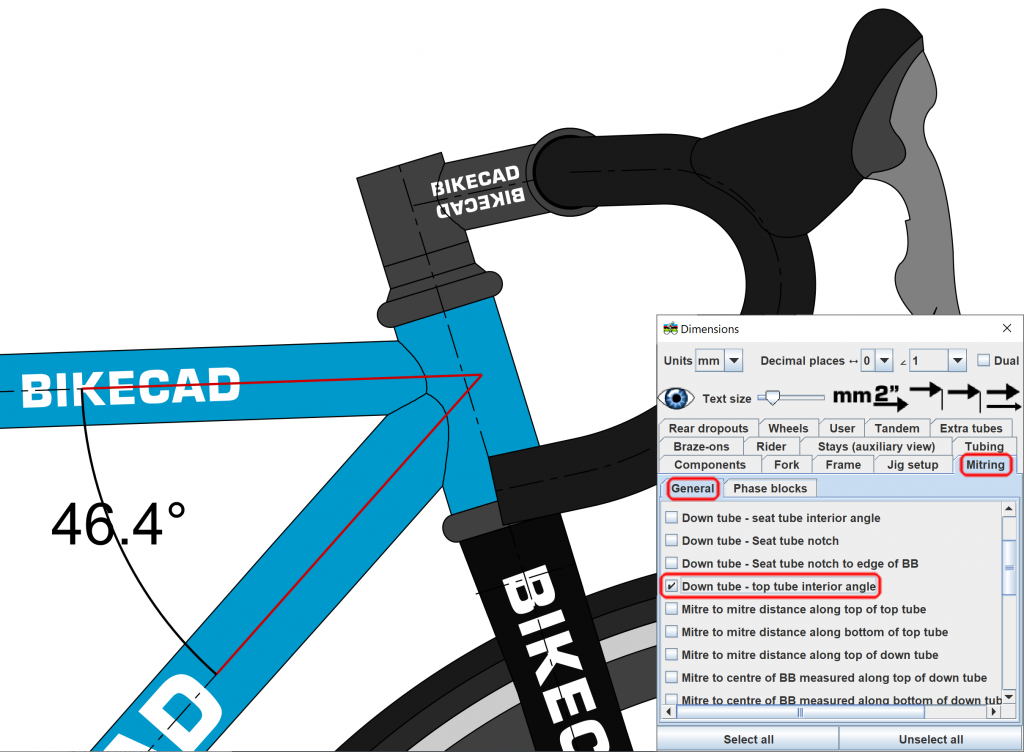

BikeCAD displays this dimension as the interior angle between the down tube and top tube. To get the angle at which to set your mill you would just take the complement of this angle 90°-46.4°=43.6°
