CS Dent



I'd love to see an option to add CS dents for crank, chainring + tire clearance.

This isn't a feature for the artisan builder so much as it is something I'd like to have if I'm sending a drawing off to a frame MFG overseas.

If I'm an idiot and there is this feature, can you link me to it?



Thanks

Chainstay dimple

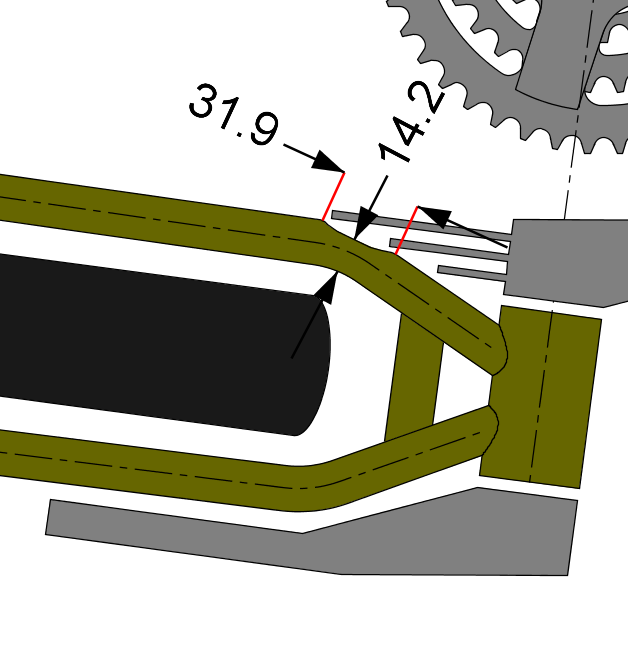

This is not currently an option. However, you could still accomplish this using the Freehand sketching tool. Below is an example of a chainstay dimple drawn in using the freehand sketching tool. I threw in a few extra dimensions as well with the user dimensions option.

Thanks Brent.

Thanks Brent.

I haven't played with the Sketch tool but I will now.
